KWI 200 INTEGRATED POWER AMPLIFIER
Please note – This product is no longer available. For informational purposes only.
Please note – This product is no longer available. For informational purposes only.
POWER. INTEGRATED
The KWI 200 represents the Integration of Simplicity, Purity, Elegance and Power. Available with optional Phono and DAC (24/192 Asynchronous USB and RCA), offers freedom from the physical space requirements of complex audio separates. The KWI 200 requires only power cord, speaker cables and speakers, to make a True High End Audio system.
Intended for the music lover looking for a simpler path to enjoying music, the KWI 200 is the solution.

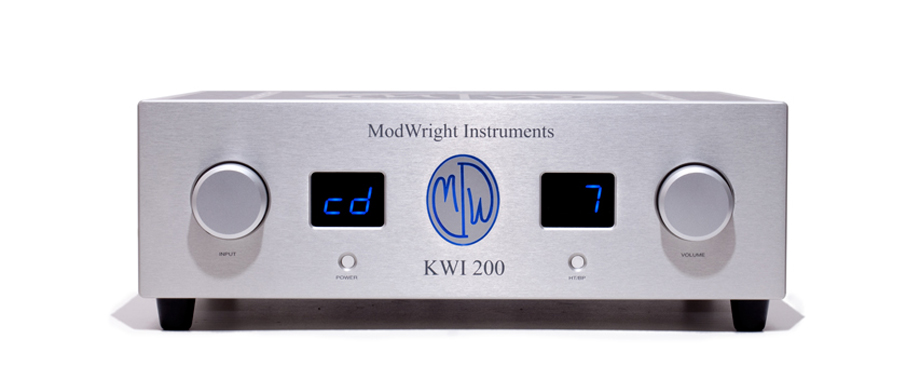

Full function remote, controls volume, mute, power, input select, remote triggers, DAC input select as well as MM or MC phono inputs (both optional). Dual digital displays, clearly visible from across the room, indicate source input and volume level. Displays may also be remotely dimmed or turned off.
Manual controls are simple: Two knobs and two buttons. Power, Home Theater Bypass (or preamp-input) button, source select, and volume control knobs complete the interface.
The KWI 200 uses a digitally controlled analog volume control with buffered input to the Solid State Music Stage, found in all of ModWright’s amplifiers. This allows for a volume control superior to standard potentiometers and a single gain stage, direct-coupled to the current amplified output stage for ultimate sonic purity.
Power handling is MOSFET by design, with a 1.5KVA power transformer and over 234,000 microfarads total capacitance. Incredible current reserves and 200W of power into 8 ohms (400W into 4 ohms), allow the flexibility to drive nearly any speaker.
KWI 200 Phono OPTION Details:
MM/High Output MC design.
Inputs: 1 pair RCA.
Gain: 50db (Including preamp stage gain).
Single Ended design.
Loading: 100, 500 1K, 47K, 100pf (internal dip switches).
[FACTORY/DEALER INSTALL ONLY]
Simple, pure, elegant and powerful. Power. Integrated.
The KWI 200 is proudly handcrafted in the U.S.A.
Downloads
Technical Specs
Power Ratings:
200W 8 ohms (.06% THD)
4 ohms (.06% THD)
400W
Features:
(3) pairs RCA inputs.
(1) pair XLR inputs.
(1) pair RCA Home Theater Bypass (or preamp-in) inputs.
(1) pair RCA Preamp-ouputs.
(2) 12V Trigger outs.
(2) Pairs 5-way binding posts.
Remote Control: Volume, mute, source, power, trigger, display dim/off.
Optional: MM/MC Phono with one pair RCA inputs.
Gain: 50db, Including preamp stage gain.
Loading: 100, 500 1K, 47K, 100pf internal dip switches.
Technical Specifications:
Input Impedance: 20K.
Bandwidth: 10Hz – 100Khz.
Gain: 34dB.
Input Sensitivity: 1 Volt.
Transformer: 1.5KVA.
Total Capacitance: > 234,000uf.
Max input level: 6Vrms (18V pk-pk).
Dimension: 17.75-Wx17.5-Dx6.5-H
Weight: 55lb (62lb shipped)
