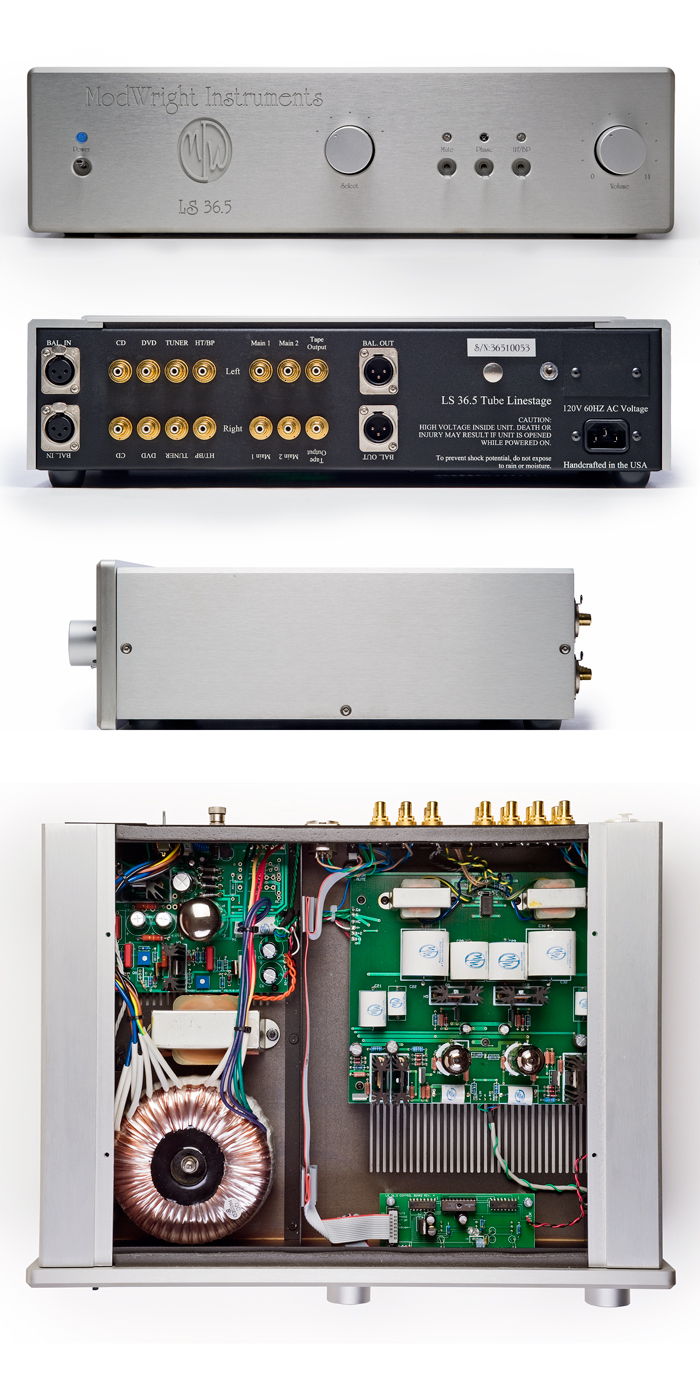

LS 36.5 Tube Linestage

Please note – This product is no longer available. For informational purposes only.

Please note – This product is no longer available. For informational purposes only.

The LS 36.5 represents ModWright’s finest tube linestage performance, offering true balanced outputs and XLR inputs.

It follows our SE tube linestage, the SWL 9.0SE, offering a higher level of performance, aesthetics and options.

Remote volume control are standard, as is phase switching, also via remote!

The LS 36.5 takes sonic performance to the next level, offering a broader and deeper soundstage and a weightier presentation, compared to the 9.0SE.

Refinements in power supply design, voltage regulation, and driver circuit design all serve to raise the bar. Refinements in grounding, transformer coupling and shielding also yield a 2 x lower noise floor than its SE predecessor!

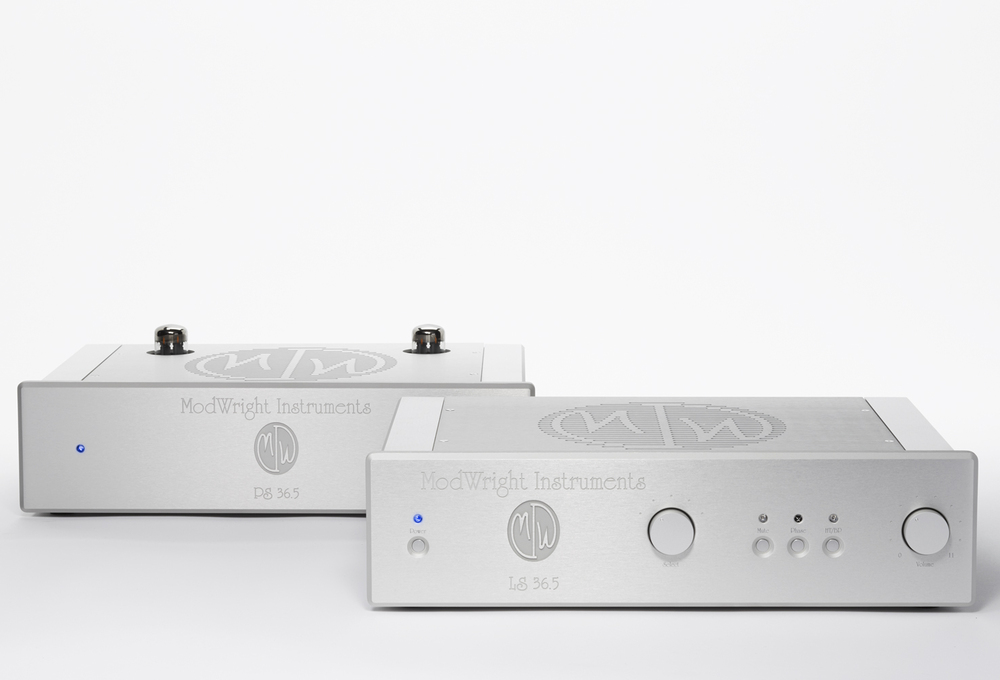

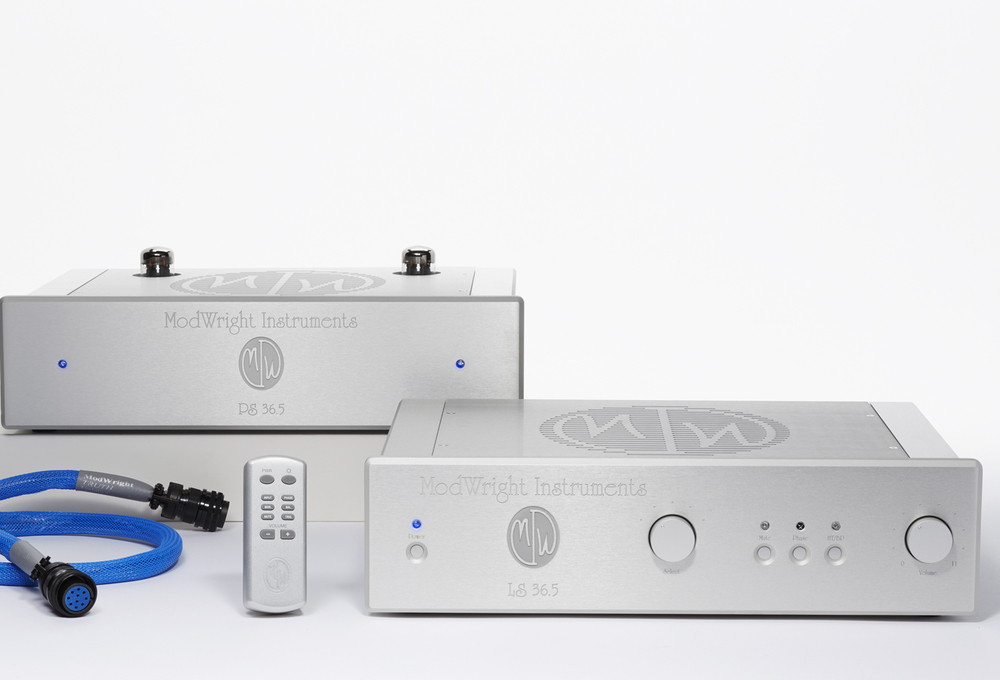

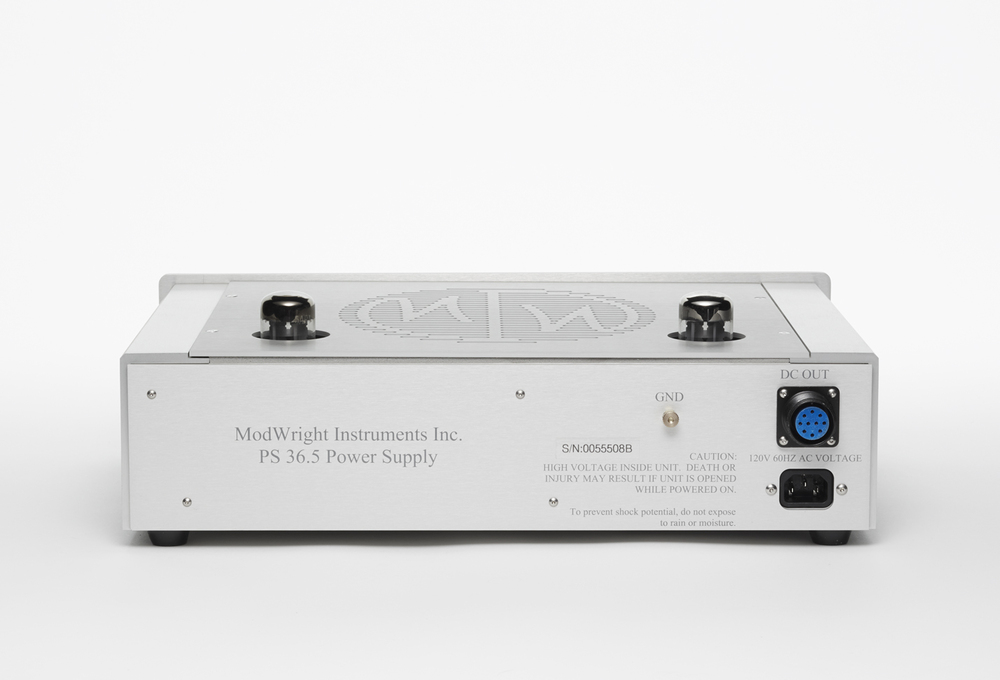

Those wishing to take the performance of the LS 36.5 to the next level again, have the option of adding the PS 36.5 dual-mono, all-tube external power supply. This PS 36.5 features a complete dual-mono topology, including dual tube rectifiers and tube voltage regulation circuitry.

Features:

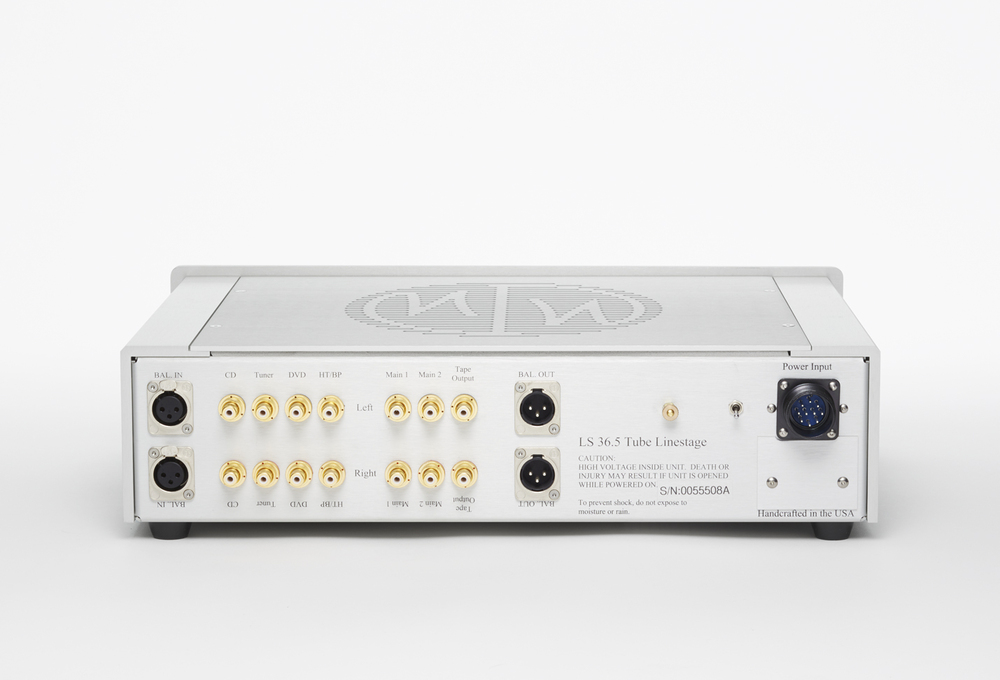

  • One set of XLR inputs
  • Four sets of RCA inputs
  • Two sets of RCA Main Outputs
  • One set of RCA Tape Outputs
  • One set of XLR balanced outputs
  • Front Panel controls include: Power, Input Select and Mute, Phase (also on remote), HT/BP
  • (Home Theater Bypass) and volume control (also on remote)

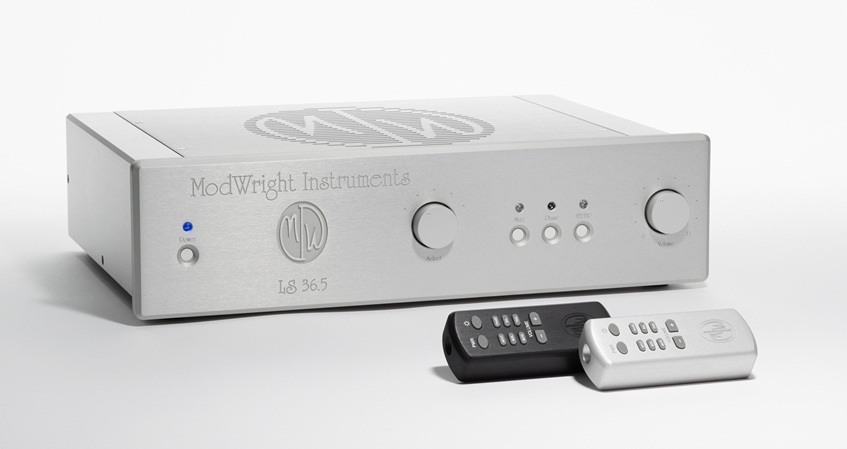

  • Custom MWI remote control for volume, phase and mute

Recommended Tube Upgrades for the LS 36.5:

  • LS36.5 Rectifier Tube: Mullard, Amperex or Phillips ‘GZ34’

Black option also available.

Downloads

Technical Specs

Dimensions: 17-1/2“W x 12-1/2“D x 4-3/4“H

Weight: 27 lbs. (30 lbs. shipped)

Tube complement: (2) 6H30 Russian Super Tubes, (1) 5AR4 rectifier

Tube rectified power supply

Gain: ~12dB

Input Impedance: 50Kohm

Output Impedance: 110ohm

Frequency Response 20Hz-100Khz +/-1dB

Noise Level: -125dB

Choke loaded power supply

Discrete Constant Current Sourced B+ regulators

DC heaters

Gain Stage: Pure Class A, cathode bias ‘Mu’ gain/buffer stage with zero feedback

Power sequence: Mute delay turn on sequence with soft start for improved tube life

Volume Control: remote control Alps motorized volume control
